New Design Front Access LED Display Panel with Magnetic Fixing (P3.91)

Quantity:



Inquire Add to Basket

Model NO.:
P3.91-IR1000
Display Function:
Video Display
Pixel Configuration:
1R,1G,1B
Scanning Mode:
1/16
Display Type:
LED Video Display
IP Rating:
IP43
LED Style:
SMD2121
Module Resolution:
64X128dots
Cabinet Material:
Die-Casting Aluminum
Transport Package:
Wooden Case
Origin:
Shenzhen China
Tube Chip Color:
Full Color
Pixel Pitch:
3.91mm
Pixel Density:
65536dots/Sq.M
System Operating Platform:
Win XP,Win 2000,98,Nt
Application:
Stage Performance, Advertising, Shopping Guide
Certification:
CE, RoHS, CCC, FCC
Module Size:
250X500mm
Cabinet Size:
500X1000mm
Trademark:
PRT
Specification:
CE, FCC, Rohs
HS Code:
8528591090

Product Description

New design Rental led panel with independent modules and magnetic fixing design for front maintance,panel size of 500x1000mm for indoor or outdoor rental use,can be used for P3.91,P4.81 and P6.25 modules with size of 250 x 500mm.

1.Popular and multifunction cabinet design, available for various application,only need to replace the module with different pixel pitch

2. Made with die-casting Aluminum material, keep strong struction and durable, long life span

3. Independent and integrated control box for quick replacement and convenient maintenance

4.LED Modules absorbed on the frame with magnets,easy to assemble and maintenance

5.Panel frame support different mode(different pixel pitch),available for P4.81, P3.91 and P6.25

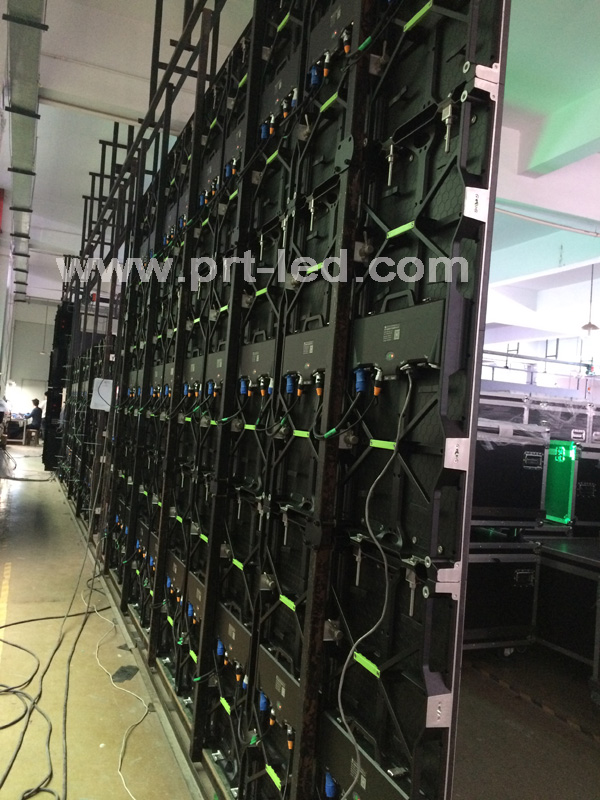

See more pictures for good understanding and contact us for details

New Design Front Access LED Display Panel with Magnetic Fixing (P3.91)

New Design Front Access LED Display Panel with Magnetic Fixing (P3.91)

C391S SPECIFICATIONS
Physical Parameter	Pixel Configuration	SMD2121 black body(NATIONSTAR)
	Pixel Pitch (mm)	3.91
	Pixel matrix per panel	64x128
	Pixel density(pixels/sq.m.)	65536
	Cabinet Dimensions (LxWxH)/(mm)	500x1000x70
	Module Dimensions (LxWxH)/(mm)	250x500
	Panel material	Aluminum-alloy
	Cabinet weight (kg/panel)	13.5
	Module weight (kg/panel)	1.31
Electronic Parameter	Color Grayscale (Bit)	14
	Gray Scale per Color (level)	16384
	Refresh Rate(Hz)	≥1200
	Driving Type	1/16
Optical Parameter	Brightness(nit)	1200
	Optimal Horizontal Viewing Angle(°)	120
	Optimal Vertical Viewing Angle(°)	120
Electrical Parameter	AC Input Voltage(V)	AC220±10%(optional)
	AC Input Frequency(Hz)	50
	AC Input Power Maximum Value(W/m⊃2;)	520
	C Input Power Typical Value(W/m⊃2;)	200
Circumstanc e Parameter	Storage Temperature(ºC)	40 - 60
	Operating Temperature(ºC)	0 - 40
	Storage Humidity(RH)	10%~90%
	IP rating (Front/Rear)	IP40/IP40
	Operating Humidity(RH)	10%~90%
	Lifetime Typical Value(hrs)	100000
Lifetime Typical Value (hrs)	Cabinet installation type	rental\fix
