P10 Full Color Outdoor LED Open Sign (Double-Sided)

Quantity:
  • P10
  • IP65
  • 1R, 1G, 1B
  • 300W / m⊃2;
  • 1/4 Scan
  • Advertising,Stage Performance,Rental
  • DIP 346
  • 16X16dots
  • PRT
  • CE, FCC. ROHS, 3C
  • 8528591090
  • Full Color
  • 10mm
  • Video Display
  • 10000 dot / m⊃2;
  • LED Video Display
  • CE, RoHS, CCC, FCC
  • 160X160mm
  • IP65
  • Wooden Case or as Required
  • Shenzhen China
Double-Sided P10 Full Color Outdoor LED Display with high brightness and competitive price, can be maintained from front side,save maintenance space room and convenient,and cost much cost

Product Features:

1) DIP led encapsulation confirm the high brightness even under sunlight,anti-corrosion,antifogging

2) Good waterproof IP65,long life span>100000Hours

3) Long view distance, High definition, Good uniformity

4) Brightness can be adjusted automatically according to different surrondings,
can be set to open and close the screen on fixed automatically

5) To display the contents what you want, by video, graphics, antimation etc, connect with PC computer or network, also can remoto control with asynchronous system(3G,Wifi,USB)

6) Size can be made to order, but the height please don't more than 2M,because of the height limited of container

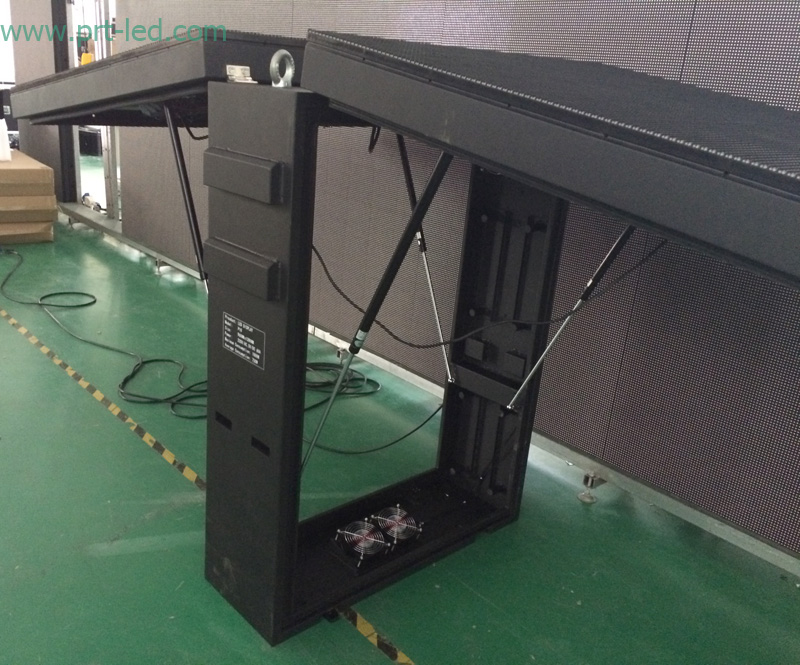

More pictures for reference:



P10 Full Color Outdoor LED Open Sign (Double-Sided)
P10 Full Color Outdoor LED Open Sign (Double-Sided)
P10 Full Color Outdoor LED Open Sign (Double-Sided)

P10 Full Color Outdoor LED Open Sign (Double-Sided)

P10 Outdoor full Color LED Screen Specification
Pixel pitch 10mm
Pixel Configuration 1R1G1B
LED component DIP346(Epistar)
Size of module 160mm x 160mm
Resolution of module 16x16
Size of cabinet 1600mmx 800mm x 250mm(customized sizes)
Resolution of cabinet 160x80dots
Material of Cabinet Iron with back doors
Weight of Cabinet <150KGS
Brightness >7500cd/sq.m
Density 10000dots/sq.m
Best viewing angle 110 /60
Best viewing distance 10-150M
Maximum power consumption <800W/sq.m
Average power consumption <300W/sq.m
Driving method 1/4 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1800Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
