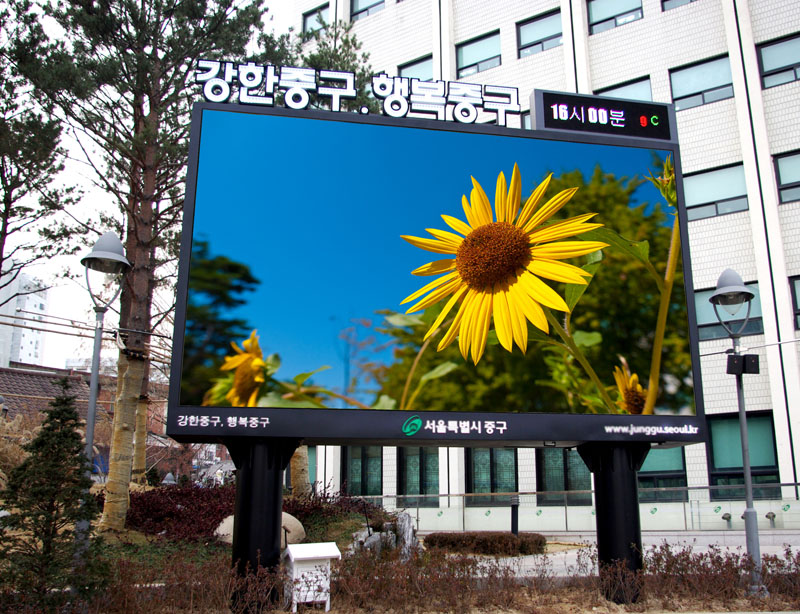

P16 Full Color Billboard Video Advertising for Outdoor

Quantity:
  • P16-dip346
  • IP65
  • 1R, 1G, 1B
  • 300W / m⊃2;
  • Static Scan
  • Advertising,Stage Performance,Rental
  • DIP 346
  • 16X16dots
  • PRT
  • Shenzhen China
  • Full Color
  • 16mm
  • Video Display
  • 3906DOT/Sq.M
  • LED Video Display
  • CE, RoHS, CCC, RoHS
  • 256X256mm
  • 1024X768mm
  • CE, FCC. ROHS, 3C
  • 8528591090
 P16 Full Color Billboard Video Advertising for outdoor with cheap price

Product Features:

1. Static sconstant current driving method, stability and energy saving

2. High brightness, high refresh rate, low power consumption

3. Longl life span, low out-of-control rate

4. High quality, with 2 years warranty, free training

5. DIP led encapsulation confirm the high brightness even under sunlight, anti-corrosion, antifogging

6.Good waterproof IP65, against bed weather outdoor, long life span

7. Brightness can be adjusted automatically according to different surrondings,can be set to open and close the screen on fixed automatically

8. Can be fixed on the wall, on the street, on top of building, or be hung for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, antimation etc, connect with PC computer or network, also can remoto control with asynchronous system.

9. Widely used for commercial led display, stage led display, traffic led display, rental led display, sports led display etc.


    Outdoor P16 Full Color LED Display Main Parameters
Visual Characteristics Unit Value
Pixel Pitch mm 16.0
Pixel Density Dots/sq.m 3906
Pixel Configuration
DIP346
Cabinet Resolution dots
Refresh Rate Hz ≥3000
View Angle(H/V) ° 100/45
Brightness nits ≥7500
Gray Scale Bit 687Million
IP Rating
65
Power Consumption(Max/Avg) W/sq.m 900/300
Input Voltage(AC) V 110~240
Modular Characteristics
Cabinet Size(W×H×D) mm 1024x768
Cabinet Material
Iron
Cabinet Weight Kg 50
Module Size(W×H) mm 256×256
Environment
Operation Temperature ºC -20~+40
Operating Humidity
10%~90%
Driving Mode
Static Scan
Control Distance Cat 5E <100m,Single mode fiber<10Km
