P4.8-576
Video Display
1R,1G,1B
1/15scan
LED Video Display
IP43
576X576mm
288X288mm
PRT
CE, FCC. ROHS, 3C
8528591090
Full Color
4.8mm
43402dots/Sq.M
Win XP,Win 2000,Win7/8

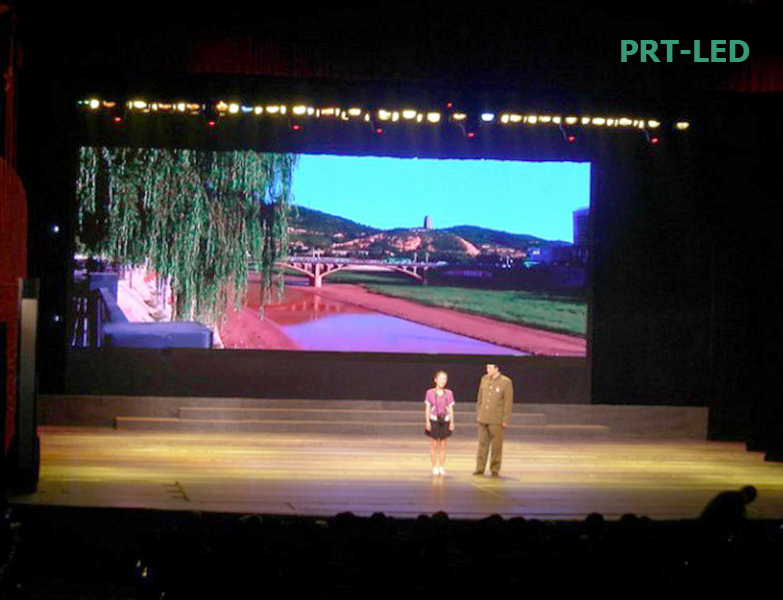

Stage Performance, Advertising, Shopping Guide
CE, RoHS, CCC, FCC
Die-Casting Aluminum
60X60dots
Flight Case or Wooden Case
Shenzhen
P4.8 SMD3528 Indoor full Color LED Screen Specification | |
Pixel pitch | 4.8mm |
Pixel Configuration | 1R1G1B |
LED component | SMD3528 |
Size of module | 288mm x 288mm |
Resolution of module | 60x60 |
Size of cabinet | 576mm x 576mm x 65mm |
Resolution of cabinet | 120x120 |
Material of Cabinet | Die-casting Aluminum |
Weight of Cabinet | 10.50KGS |
Brightness | >1500cd/m2 |
Density | 43042dots/m2 |
Best viewing angle | 140 /140 |
Pixel Configuration | 1R1G1B |
Best viewing distance | 3-50M |
Maximum power consumption | 1200W/sq.m |
Average power consumption | 640W/sq.m |
Driving method | 1/15 scan |
Control method | Synchronization |
Gray scale | 65536 |
Colors | 256*256*256 |
Color temperature | 3200-9300k |
Uniformity | 97% |
Working voltage | AC220V/110V±10% |
Working temperature | -20ºC~+50ºC±10% |
Working humidity | 10% ~ 90% |
MTBF | 10,000 hours |
Frame frequence | 50/60Hz |
Refresh frequence | >1920Hz |
IP grade | IP31 |
Life Span | 100,000 hours |
Data transafer method | RJ45 |
Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
P4.8 SMD3528 Indoor full Color LED Screen Specification | |
Pixel pitch | 4.8mm |
Pixel Configuration | 1R1G1B |
LED component | SMD3528 |
Size of module | 288mm x 288mm |
Resolution of module | 60x60 |
Size of cabinet | 576mm x 576mm x 65mm |
Resolution of cabinet | 120x120 |
Material of Cabinet | Die-casting Aluminum |
Weight of Cabinet | 10.50KGS |
Brightness | >1500cd/m2 |
Density | 43042dots/m2 |
Best viewing angle | 140 /140 |
Pixel Configuration | 1R1G1B |
Best viewing distance | 3-50M |
Maximum power consumption | 1200W/sq.m |
Average power consumption | 640W/sq.m |
Driving method | 1/15 scan |
Control method | Synchronization |
Gray scale | 65536 |
Colors | 256*256*256 |
Color temperature | 3200-9300k |
Uniformity | 97% |
Working voltage | AC220V/110V±10% |
Working temperature | -20ºC~+50ºC±10% |
Working humidity | 10% ~ 90% |
MTBF | 10,000 hours |
Frame frequence | 50/60Hz |
Refresh frequence | >1920Hz |
IP grade | IP31 |
Life Span | 100,000 hours |
Data transafer method | RJ45 |
Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
