P4.81 Full Color Outdoor Rental LED Billboard with 500X500mm Panels

Quantity:



Inquire Add to Basket

Model NO.:
P4.81
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Average Power Consumption:
300W / m⊃2;
Scanning Mode:
1/13 Scan
Application:
Stage Performance, Advertising,Rental
Type of LEDs:
SMD2727
Panel Resolution:
104X104 Dots
Trademark:
PRT
Specification:
CE, ROHS, FCC, ETL
HS Code:
8528591090
Tube Chip Color:
Full Color
Pixel Pitch:
4.81mm
Display Function:
Video Display
Pixel Density:
43264dots/Sq.M
Display Type:
LED Video Display
Certification:
CE, RoHS, ETL
Panel Size:
500X500mm
Module Size:
250X250mm
Transport Package:
Flight Case
Origin:
Shenzhen China

Product Description

P4.81 Full Color LED Billboard for outdoor rental, with high contrast, high brightness up to 5500nits,Slim Die-casting Aluminum cabinet,size can be 500x500mm or 500x1000mm,

Product Features:

1. Made with SMD2727 led lamps, high contrast and wide view angle up to 140/140(H/V)

2.Seamless spliced,with smooth and vivid visual effect,perfect performance

3.Die-casting aluminum cabinets ensure lightweight and strong durable

4.Module size of 250x250mm, can be assembled with 500x500mm and 500x1000mm

5.IP65 for front,and IP54 for back , good waterproof, can be used for outdoor when it is raining

6.High quality, producing according to the international standard of CE,FCC, Rohs,ETL

7. The cabinet design suit for outdoor P3.91, P4.81,P5.95,P6.25,P8.928

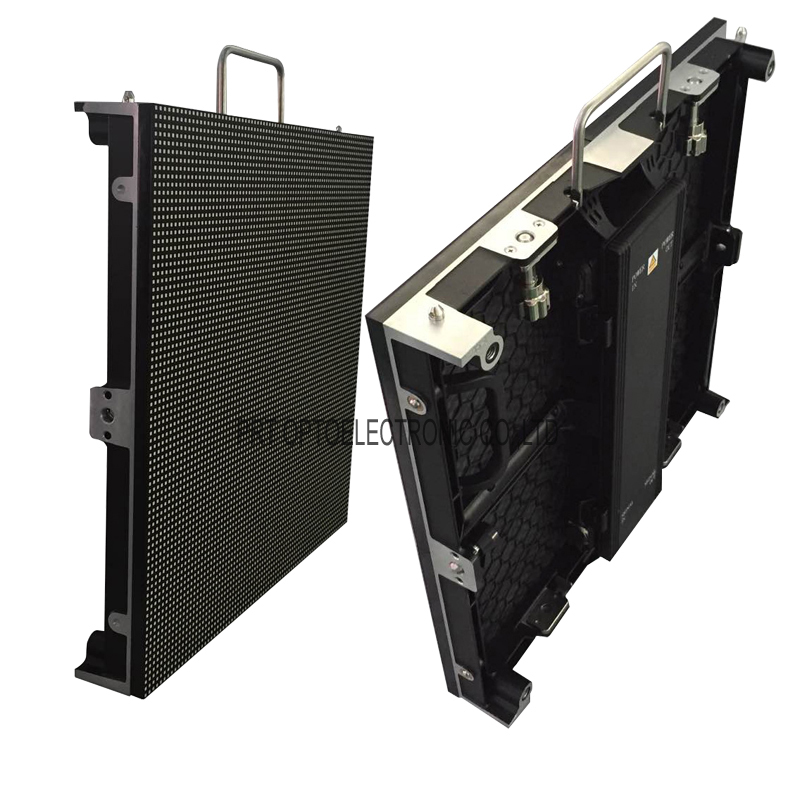

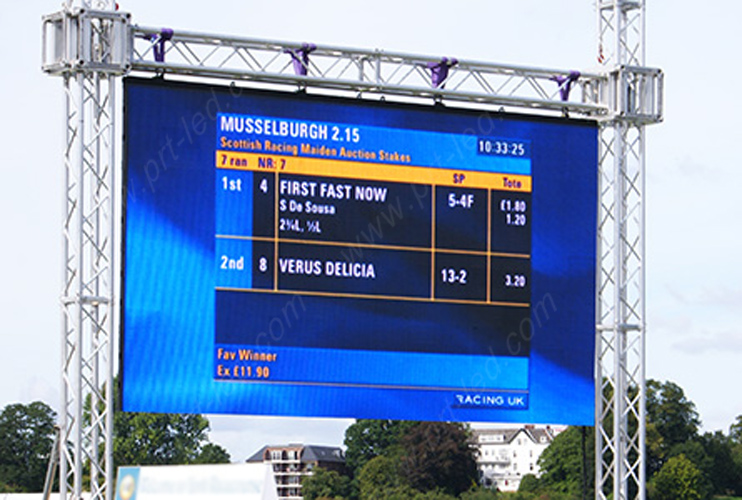

More pictures as below:

P4.81 Full Color Outdoor Rental LED Billboard with 500X500mm Panels

P4.81 Full Color Outdoor Rental LED Billboard with 500X500mm Panels

P4.81 Outdoor full Color LED Screen Specification
Pixel pitch	4.81mm
Pixel Configuration	1R1G1B
LED component	SMD2727
Size of module	250mm x 250mm
Resolution of module	52x52
Size of cabinet	500mm x 500mm x 75mm
Resolution of cabinet	104x104
Material of Cabinet	Die-casting Aluminum
Weight of Cabinet	8KGS
Brightness	>6000cd/sq.m
Density	43264dots/sq.m
Best viewing angle	140 /140
Pixel Configuration	1R1G1B
Best viewing distance	3-60M
Maximum power consumption	800W/sq.m
Average power consumption	300W/sq.m
Driving method	1/13 scan
Control method	Synchronization
Gray scale	65536
Colors	256256256
Color temperature	3200-9300k
Uniformity	97%
Working voltage	AC220V/110V±10%
Working temperature	-20ºC~+50ºC±10%
Working humidity	10% ~ 90%
MTBF	10,000 hours
Frame frequence	50/60Hz
Refresh frequence	>2000Hz
IP grade	IP65
Life Span	100,000 hours
Data transafer method	RJ45
Pratical standard	CCC TUV-CE ETL etc.
Effectivce Communication Distance(without relay)	Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM
Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform	WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
