P5.95 Outdoor Full Color LED Display Screen for Sports Perimeter

Quantity:
  • P5.95-outdoor
  • IP65
  • 1R, 1G, 1B
  • 300W / m⊃2;
  • 1/7 Scan
  • Stage Performance, Advertising,Rental
  • SMD3535
  • 84X84 Dots
  • PRT
  • CE, ROHS, FCC, ETL
  • 8528591090
  • Full Color
  • 5.95mm
  • Video Display
  • 28224dots/Sq.M
  • LED Video Display
  • CE, RoHS, ETL
  • 500X500mm
  • 250X250mm
  • Flight Case or Wooden Case
  • Shenzhen China
P5.95 Outdoor Full Color Display Screen for rental or fixed install,with 500x500mm panel,also can be 500x1000mm,high brightness and good uniformity

Product Features:

1. Made with SMD3535 led lamps, high resolution and wide view angle H140/V140

2.Seamless spliced,with smooth and vivid visual effect,perfect performance

3.Die-casting aluminum cabinets ensure lightweight and strong durable

4.Module size of 250x250mm,  can be assembled with 500x500mm and 500x1000mm

5.IP65 for front,and IP54 for back , good waterproof, can be used for outdoor  against bad weather

6.High quality, producing according to the international standard of CE,FCC, Rohs,ETL

The cabinet design suit for outdoor P3.91, P4.81,P5.95,P6.25,P8.928


More pictures as following:

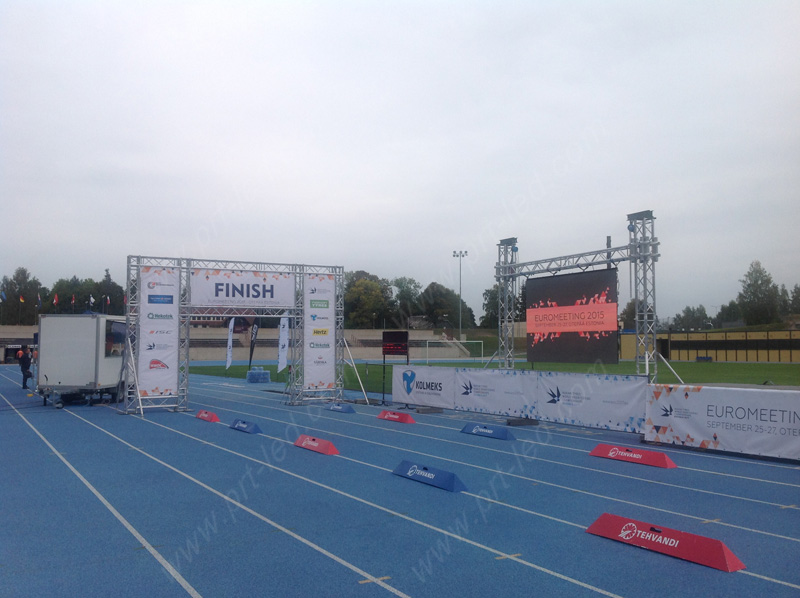

P5.95 Outdoor Full Color LED Display Screen for Sports Perimeter

P5.95 Outdoor Full Color LED Display Screen for Sports Perimeter
P5.95 Outdoor Full Color LED Display Screen for Sports Perimeter
P5.95 Outdoor Full Color LED Display Screen for Sports Perimeter
P5.95 Outdoor Full Color LED Display Screen for Sports Perimeter
P5.95 Outdoor Full Color LED Display Screen for Sports Perimeter

Parameters for reference, please contact us for details:
P5.95 Outdoor full Color LED Screen Specification
Pixel pitch 5.95mm
Pixel Configuration 1R1G1B
LED component SMD3535
Size of module 250mm x 250mm
Resolution of module 42x42
Size of cabinet 500x500mmx75mm /500 x 1000 x 75mm
Resolution of cabinet 84x84/84x168dots
Material of Cabinet Die-casting Aluminum/Aluminum profile
Weight of Cabinet 8kgs/ 13KGS
Brightness >5500cd/sq.m
Density 28224dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 6-100M
Maximum power consumption 1000W/sq.m
Average power consumption 550W/sq.m
Driving method 1/7 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
