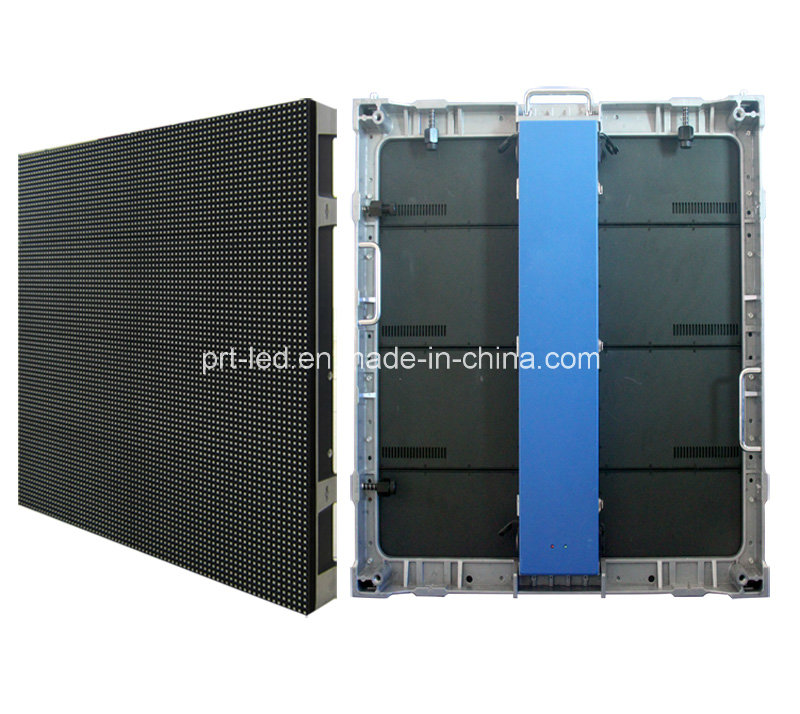

P5 Die-Cast Aluminum Indoor Full Color LED Display for Rental

Quantity:



Inquire Add to Basket

Model NO.:
p5-640
Display Function:
Video Display
Pixel Configuration:
1R,1G,1B
Scanning Mode:
1/16 Scan
Display Type:
LED Video Display
IP Rating:
IP43
Cabinet Size:
640X640
Module Size:
160X160mm
Trademark:
PRT
Origin:
Shenzhen
Tube Chip Color:
Full Color
Pixel Pitch:
5mm
Pixel Density:
40,000 dots / m⊃2;
System Operating Platform:
Win XP,Win 2000,98,Nt
Application:
Stage Performance, Advertising, Shopping Guide
Certification:
CE, RoHS, CCC, FCC
LED Encapsulation:
SMD3528
Module Resolution:
32X32dots
Specification:
CE, FCC. ROHS, 3C
HS Code:
8528591090

Product Description

P5 die-cast aluminum indoor full color led display for rental with 640x640mm cabinet, slim thickness, good performance with competitive price, high quality,excellent service

1.Made with Aluminum material cabinet, good heat dissipation

2.SMD leds ensure low power consumption, long life span

3.Super thin only with 60mm thickness, lightweight and protable, easy for transport

4.Easy and quickly to install and dismantle

5.Seamless splicing, High brightness, good performance

6.Wide view angle and close view distance, friendly to eyes

7.CE, FCC, RoHs confirm the high quality

8.3 years warrantly

Indoor P5 Full Color LED Display Main Parameters
Visual Characteristics	Unit	Value
Pixel Pitch	mm	5.0
Pixel Density	Dots/sq.m	40000
Pixel Configuration		Black body SMD3528
Cabinet Resolution	dots	128×128
Refresh Rate	Hz	≥1200
View Angle(H/V)	°	150/120
Brightness	nits	≥2000
Gray Scale	Bit	687Million
IP Rating		43
Power Consumption(Max/Avg)	W/sq.m	1000/500
Input Voltage(AC)	V	110~240
Modular Characteristics
Cabinet Size(W×H×D)	mm	640×640
Cabinet Material		Aluminum alloy/iron
Cabinet Weight	Kg	10.5/15
Module Size(W×H)	mm	160×160
Environment
Operation Temperature	ºC	-20~+40
Operating Humidity		10%~90%
Driving Mode		1/16 Scan
Control Distance	Cat 5E <100m,Single mode fiber<10Km
