P10
IP65
1R, 1G, 1B
350W / m²
1/2 Scan
Advertising,Performance,Rental
640X640mm
SMD3535
PRT
CE, FCC. ROHS, 3C
8528591090
Full Color
10mm
Video Display
10000dots/Sq.M
LED Video Display
CE, RoHS, CCC, ETL
Die-Casting Aluminum
140 Degree for Horizontal and Vertical
Flight Case or Wooden Case
Shenzhen
LED Advertising led display board with full color for rental or fixed install, with high definition,high constrast 5000:1, with board size of 640x640mm, suit for indoor and outdoor use
Product Advantage:
1.SMD 3 in 1 led encapsulation ensure wide view angle and slim thickness
2.Dot-to-dot maintainance, easy and quick to maintain and save much labour cost and working time
3.Made with Die-casting Aluminum material,strong configuration and lasting
4.Small panel size of 640×640mm,Super thin only with 95mm thickness
5.light weight and protable,easy for collection and transportation,better for rental use
6.Rental design with locks and aviation plugs, easy to install and dismantle,easy to be combined randomly
7.Seamless spliced,good uniformity, good performance
8.Can be fixed installation or hung, meet the request on any scenes, for stage background,live broadcast, show, concert, banquet,message sign and commercial advertising etc.

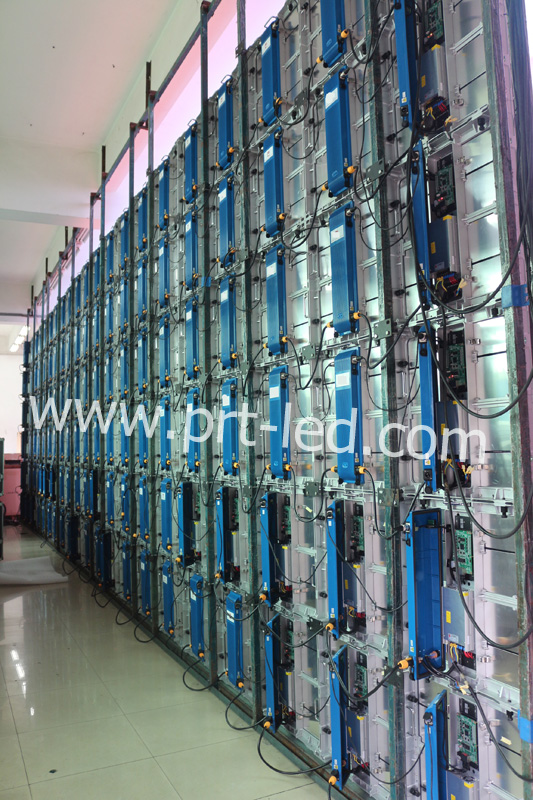

More picture for reference:
Related parameter as following for reference,please contact us for details
| Model No. | P5(indoor) | P6.67 | P8 | P10 | P5 |
| Pixel pitch | 5mm | 6.67mm | 8mm | 10mm | 5mm |
| Led type | SMD3528 | SMD3535 | SMD3535 | SMD3535 | SMD3535 |
| Resolution(dots/sq.m) | 40000 | 22478 | 15625 | 10000 | 40000 |
| Brightness(Nits) | ≥1500 | ≥5000 | ≥5000 | ≥5000 | ≥6000 |
| Drive mode | 1/16 | 1/8 | 1/5 | 1/2 | 1/8 |
| Module size(mm) | 320×320 | 320×160 | 320×160 | 320×160 | 320×320 |
| Panel size (mm) | 640×640 | 640×640 | 640×640 | 640×640 | 640×640 |
| Panel resolution(dots) | 128×128 | 96×96 | 80X80 | 64X64 | 128X128 |
| Cabinet weight(KGS) | 15 | 14 | 13 | 13 | 15 |
| Power consumption Max./Avg. (W/m⊃2;) | 480/160 | 700/230 | 700/230 | 700/230 | 750/250 |
| View angle(H/V) | 160°/140° | 160°/140° | 160°/140° | 160°/140° | 160°/140° |
| Refresh rate(Hz) | ≥1920 | ≥2000 | ≥2000 | ≥2000 | ≥2000 |
| Grey scale | 16Bits | 16Bits | 16Bits | 16Bits | 16Bits |
| Best view distance | 4-30M | 7-75M | 8-75M | 8-100M | 4-50M |
| Protection level(Front/Back) | IP43/IP31 | IP65/IP65 | IP65/IP65 | IP65/IP65 | IP65/IP65 |
| Input Power (V) | 110~240 | 110~240 | 110~240 | 110~240 | 110~240 |
| Working Temperature | -20ºC~+50ºC | -20ºC~+50ºC | -20ºC~+50ºC | -20ºC~+50ºC | -20ºC~+50ºC |
| Working humidity | 10% ~90% | 10% ~90% | 10% ~90% | 10% ~90% | 10% ~90% |
| Control | Caste ≤100M, Fiber optical≤10000Mm2 | ||||
