P6.25 Full Color LED Digital Signage for Outdoor Sport Matches

Quantity:
  • P6.25

  • IP65

  • 1R, 1G, 1B

  • 300W / m⊃2;

  • 1/10 Scan

  • Advertising

  • SMD3535

  • Die-Casting Aluminum

  • IP65

  • Wooden Case or as Required

  • Shenzhen China

  • Full Color

  • 6.25mm

  • Video Display

  • 25600dots/Sq.M

  • LED Video Display

  • CE, RoHS, CCC, FCC

  • 250X250mm

  • Synchronous

  • PRT

  • CE, FCC. ROHS, 3C

  • 8528591090

P6.25  Full Color LED Digital Signage for outdoor permanent install,also can be hung, for advertising, with high resolution,high gray scale, high refresh rate, high brightness,good stability


Product Features:

1.SMD3535 3 in 1 led encapsulation confirm wide view angle and lower power consumption

2. Good waterproof IP65, suit to any weather,anti-corrossion,long life span

3. Die-casting Aluminum material cabinet with slim thickness of 80mm ensure light weight, easy to pick up and move,
 better for rental use,

4. High brightness up to 6000nits, close view distance,good performance

5. Rental design cabinet with locks and aviation plugs, easy and quick to assemble without tools in short time, can be fixed install or hang on truss with flying bar

6. Dot to dot maintainance, quick maintain and save cost

7.No fans design, no noise caused, good environment protection

8. Widely used for stage, concert, show, banquet, wedding, public advertising etc.

9. This cabinet design also suit for outdoor P8.928,P6.25,P5.95,P4.81 and P3.91

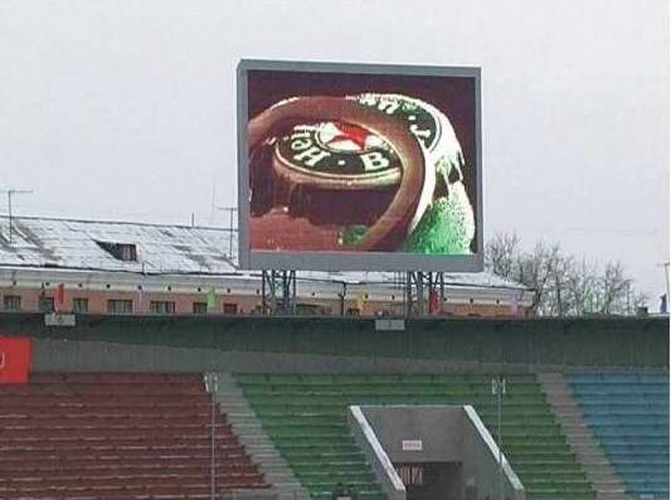

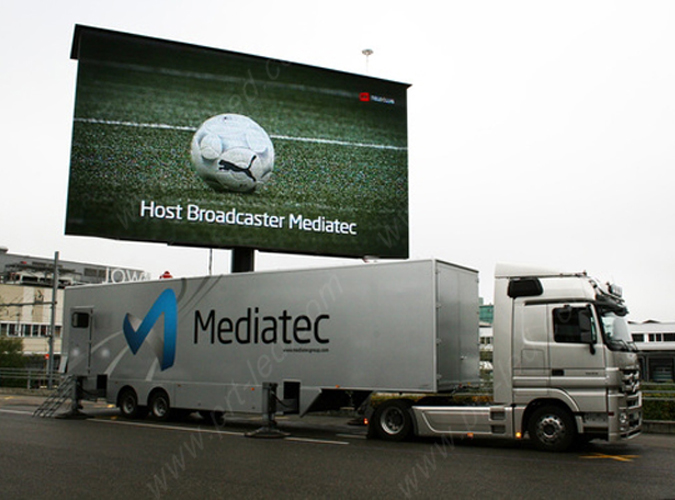

More cabinet pictures for reference as below:


P6.25 Full Color LED Digital Signage for Outdoor Sport Matches
P6.25 Full Color LED Digital Signage for Outdoor Sport Matches

P6.25 Full Color LED Digital Signage for Outdoor Sport Matches
P6.25 Full Color LED Digital Signage for Outdoor Sport Matches
P6.25 Full Color LED Digital Signage for Outdoor Sport Matches




P6.25 Outdoor full Color LED Screen/Curtain Specification
Pixel pitch 6.25mm
Pixel Configuration 1R1G1B
LED component SMD3535
Size of module 250mm x 250mm
Resolution of module 40x40dots
Size of cabinet 500mmx500mm/ 500mm x 1000mm x 75mm
Resolution of cabinet 80x80/80x160dots
Material of Cabinet Die-casting Aluminum/Aluminum profile
Weight of Cabinet 8kgs/13.5KGS
Brightness >5500cd/sq.m
Density 25600dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 6-100M
Maximum power consumption 800W/sq.m
Average power consumption 500W/sqm
Driving method 1/10 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
