P6 Outdoor Full Color Rental LED Display with Die-Casting Aluminum Panel 576X576mm

Quantity:
  • Pixel 6mm
  • IP65
  • 1R, 1G, 1B
  • 300W / m⊃2;
  • 1/8 Scan
  • Advertising, Stage Performance, Rental
  • SMD3535
  • 576X576mm
  • PRT
  • CE, FCC. ROHS, 3C
  • 8528591090
  • Full Color
  • 6mm
  • Video Display
  • 27777dots/Sq.M
  • LED Video Display
  • CE, RoHS, CCC
  • 192X192mm
  • IP65
  • Wooden Case or as Required
  • Shenzhen China
Full color P6 Outdoor LED Display Board with size 576x576mm for outdoor permanent install or rental use, with high brightness and good waterproof, high resolution and good performance

Product features:

1.Waterproof IP65,good for outdoor rental,small size is available

2. SMD led encapsulation confirm wide view angle and slim thickness board

3.High brightness up to 6000nits,long view distance, Good uniformity

4.With Rental design Aluminum Cabinet,easy and quick to assemble without tools in short time

5.Die-casting cabinets confirm the strong configuration and lasting


6.low power consumption, No fans,no noise created, energy-saving and good environment protection


7.Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want synchronously with PC

8.Widely used for commercial advertising,stage,show,event background screen,mobile led sign. traffic message board,sports stadium perimeter display etc.

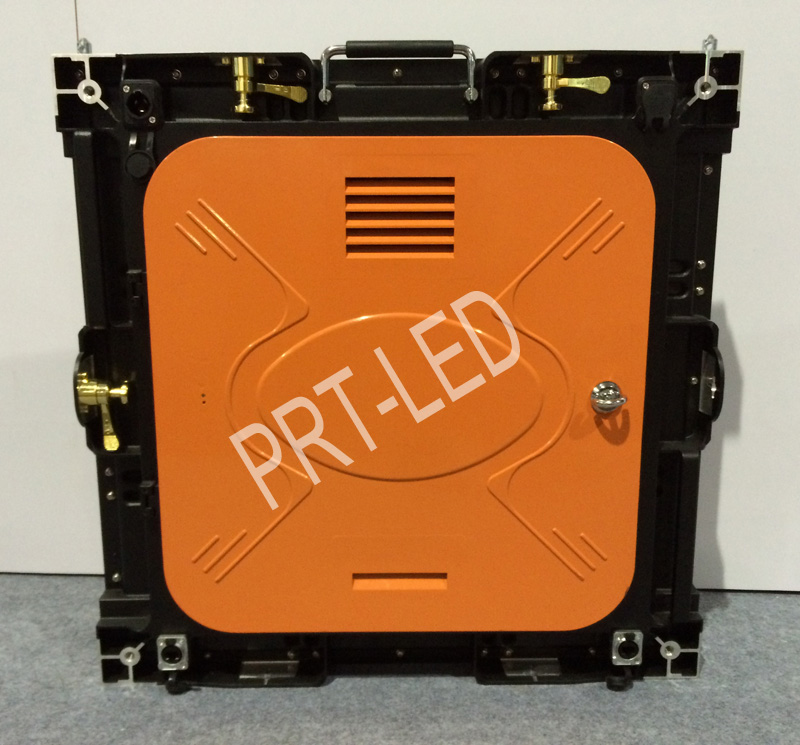

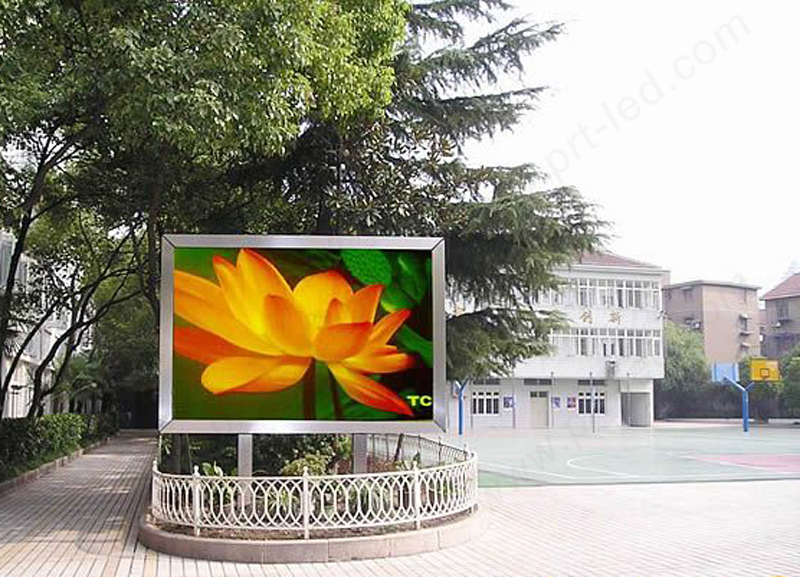

More pictures for reference:
P6 Outdoor Full Color Rental LED Display with Die-Casting Aluminum Panel 576X576mm



P6 Outdoor Full Color Rental LED Display with Die-Casting Aluminum Panel 576X576mm





P6 Outdoor Full Color Rental LED Display with Die-Casting Aluminum Panel 576X576mm P6 Outdoor Full Color Rental LED Display with Die-Casting Aluminum Panel 576X576mm
P6 Outdoor Full Color Rental LED Display with Die-Casting Aluminum Panel 576X576mm



P6 Outdoor full Color LED Screen Specification
Pixel pitch 6mm
Pixel Configuration 1R1G1B
LED component SMD3535 black
Size of module 192mm x 192mm
Resolution of module 32x32
Size of cabinet 576mm x 576mm x 65mm
Resolution of cabinet 96x96
Material of Cabinet Die-casting Aluminum
Weight of Cabinet 12KGS
Brightness >6000cd/sq.m
Density 27777dots/sq.m
Best viewing angle 140 /140
Best viewing distance 6-80M
Maximum power consumption <1000W/sq.m
Average power consumption <400W/sq.m
Driving method 1/8 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >2000Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
