Precise Die-Casting Aluminum LED Display Panel for Indoor P4.8 (480X480mm)

  • P4.8mm indoor

  • Video Display

  • 1R,1G,1B

  • 1/15 Scan

  • LED Video Display

  • IP31

  • 480X480mm

  • 480X480mm

  • PRT

  • CE, FCC. ROHS, 3C

  • 8528591090

  • Full Color

  • 4.8mm

  • 43402dots/Sq.M

  • Win XP,Win 2000,98,Win7/8

  • Stage Performance, Advertising, Shopping Guide

  • CE, RoHS, CCC, FCC

  • Die-Casting Aluminum

  • 100X100dots

  • Flight Case or Wooden Case

  • Shenzhen

P4.8 Full Color LED Display Panel with size of 480x480mm for indoor rental or permanent installation, with super slim thickness, light weight but strong and lasting,long life span

Product Description:

1. Made with aluminum material ensure light weight,easy to move and portable

2. Rental design with locks and aviation connectors, easy to install and dismantle without any tools

4. Can be suspend or stack installation, Seamless splicing,good uniformity

5. SMD Black body leds for high contrast radio, High definition and wide view angle, good vision effection and cost performance

6. No fans design no noise created,and aluminum material for good heat dissipation

7. Packed with flightcase for transport conveniently

8. Widely used in public advertising, theatre, live show, live meeting, banquet, stage background etc.

Remarks. This rental cabinet design is available to indoor P3,P3.75,P4,P4.8,P5

Please check more photoes as following:

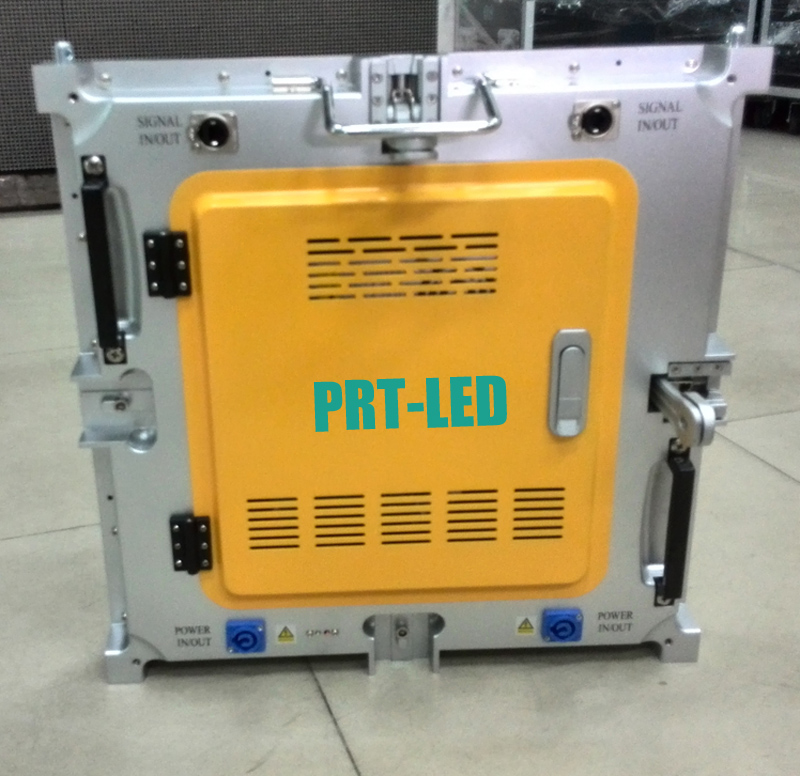

Precise Die-Casting Aluminum LED Display Panel for Indoor P4.8 (480X480mm)
Precise Die-Casting Aluminum LED Display Panel for Indoor P4.8 (480X480mm)
Precise Die-Casting Aluminum LED Display Panel for Indoor P4.8 (480X480mm)
  Indoor Rental full Color LED Screen Specification
Pixel pitch 3mm 3.75mm 4mm 4.8mm 5mm
Pixel Configuration 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
LED component SMD2121 black SMD2121 black SMD2121 black SMD3528 SMD3528
Size of module 240mm x 240mm
Resolution of module(Dots) 80 x 80 64 x 64 60 x 60 50 x 50 48 x 48
Size of cabinet 480mm x 480mm x 60mm
Resolution of cabinet(Dots) 160 x 160 128 x 128 120 x 120 100 x 100 96x 96
Material of Cabinet Die-casting Aluminum
Weight of Cabinet 10.5KGS 10.5KGS 10.5KGS 10KGS 10KGS
Brightness >1500cd/ >1500cd/ >1500cd/ >1500cd/ >1500cd/
Density 111111dots/ 71111dots/ 62500dots/ 43402dots/ 40000dots/
Best viewing angle 140 /140 140 /140 140 /140 140 /140 140 /140
Best viewing distance 3-50M 3-50M 3-50M 4-60M 4-60M
Maximum power consumption 1200W/ 1200W/ 1200W/ 1000W/ 1000W/
Average power consumption 640W/ 640W/ 640W/ 500W/ 500W/
Driving method 1/16 scan 1/16 scan 1/15 scan 1/10 scan 1/16 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M;
Multi-mode optic fiber: 500M;Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
