SMD3535 P8 Outdoor LED Advertising Board with High Brightness (up 6000nits)

Quantity:
  • P8 outdoor
  • IP65
  • 1R, 1G, 1B
  • 350W / m⊃2;
  • 1/4 Scan
  • Advertising,Stage Performance,Rental
  • SMD3535
  • 40X20dots
  • PRT
  • CE, FCC. ROHS, 3C
  • 8528591090
  • Full Color
  • 8mm
  • Video Display
  • 15625dots/Sq.M
  • LED Video Display
  • CE, RoHS, CCC, FCC
  • 320X160mm
  • Waterproof Iron
  • Wooden Case or as Required
  • Shenzhen China
P8 Outdoor LED Advertising Board with high brightness, wide view angle,high quality with CE,FCC Rohs certificates,and 2years warranty

Product Features:

1 .SMD led encapsulation confirm wide view distance and good uniformity

2. Anti-corrosion,antifogging,and good waterproof IP65,long life span

3. High pixel density, High brightness, Long view distance,

4. Slim thickness module,low power consumption,energy-saving

5. Can be fixed on the wall, on the street, on the top of building, or  for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, antimation etc, connect with PC computer or notebook, also can remoto control with asynchronous system.

6. Widely used for commercial advertising led display, stage background screen,mobile sign board. traffic led billboard,rental led display panel, sports scoreboard and display screen etc.

More Pictures for good understanding:

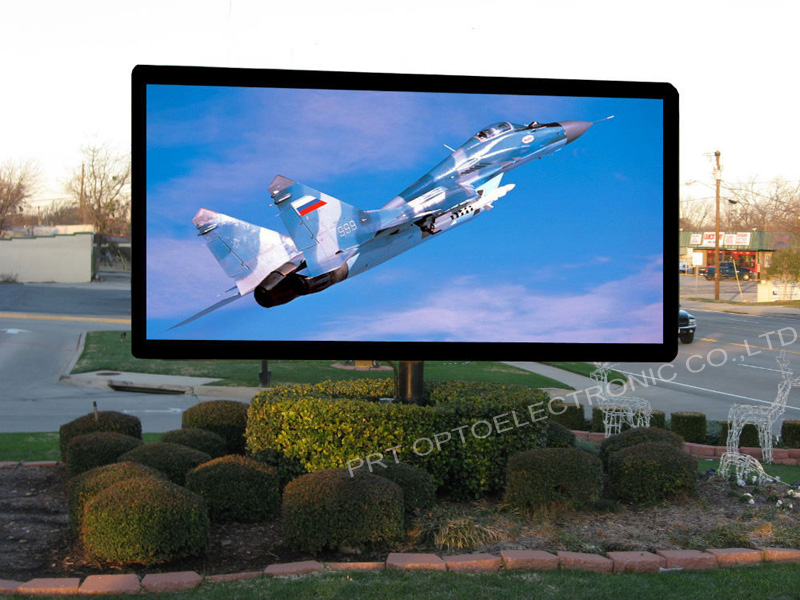

SMD3535 P8 Outdoor LED Advertising Board with High Brightness (up 6000nits)SMD3535 P8 Outdoor LED Advertising Board with High Brightness (up 6000nits)SMD3535 P8 Outdoor LED Advertising Board with High Brightness (up 6000nits)SMD3535 P8 Outdoor LED Advertising Board with High Brightness (up 6000nits)

SMD3535 P8 Outdoor LED Advertising Board with High Brightness (up 6000nits)
SMD3535 P8 Outdoor LED Advertising Board with High Brightness (up 6000nits)



P8 Outdoor full Color LED Screen Specification
Pixel pitch 8mm
Pixel Configuration 1R1G1B
LED component SMD3535
Size of module 320mm x 160mm
Resolution of module 32x16
Size of cabinet 960mm x 960mm x 150mm
Resolution of cabinet 120x120
Material of Cabinet Steel Iron/Aluminum
Weight of Cabinet <45KGS
Brightness >6000cd/sq.m
Density 15625dots/sq.m
Best viewing angle 140 /140
Best viewing distance 8-100M
Maximum power consumption <800W/sq.m
Average power consumption <300W/sq.m
Driving method 1/5 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1800Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
