Slim Aluminum P6.25 Curved LED Sign Board for Outdoor Display

Quantity:
  • P6.25-curved

  • IP65

  • 1R, 1G, 1B

  • 300W / m²

  • 1/10 Scan

  • Stage Performance, Advertising,Shopping

  • SMD3535

  • Outdoor/Indoor

  • PRT

  • CE, FCC. ROHS, 3C

  • 8528591090

  • Full Color

  • 6.25mm

  • Video Display

  • 25600dots/Sq.M

  • LED Video Display

  • CE, RoHS, CCC

  • 250X250mm

  • Aluminum Profile

  • Wooden Case or as Required

  • Shenzhen China

P6.25 Slim Aluminum Sign Board with certain chamfer angle for curved screen, arc-shaped screen, also can for flat screen, with cabinet size 500x1000mm,also can be 500x500mm

Features:

1. SMD led encapsulation confirm wide view angle and good uniformity

2. Low power consumption,energy saving, long life span>100000Hours

3.Slim Aluminum cabinet ensure lightweight,easy to move with hands

4. Cabinet with +- 15 degree adjustable angle,and with adjuster to combine abnormal shaped led screen, like S shape, circle shape,wave shape,etc.

5. Easy and quick to assemble without tools in short time

6. No noise created,energy saving, good environment protection

7.Widely used for stage, concert ,show, banquet, wedding background for rental or fixed installation

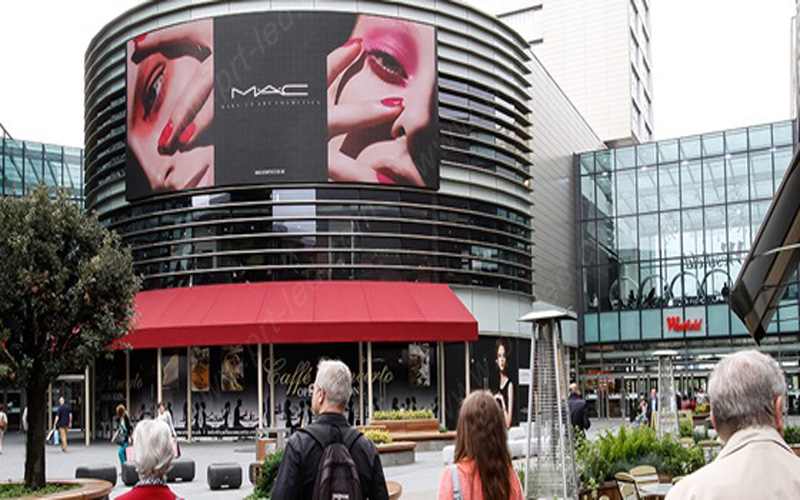

Slim Aluminum P6.25 Curved LED Sign Board for Outdoor Display

Slim Aluminum P6.25 Curved LED Sign Board for Outdoor Display
Slim Aluminum P6.25 Curved LED Sign Board for Outdoor Display

Slim Aluminum P6.25 Curved LED Sign Board for Outdoor Display




P6.25 Outdoor full Color LED Screen/Curtain Specification
Pixel pitch 6.25mm
Pixel Configuration 1R1G1B
LED component SMD3535
Size of module 250mm x 250mm
Resolution of module 40x40dots
Size of cabinet 500mm x 1000mm x 70mm
Resolution of cabinet 80x160dots
Material of Cabinet Aluminum profile
Weight of Cabinet 13.5KGS
Brightness >5500cd/sq.m
Density 25600dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 6-100M
Maximum power consumption 800W/sq.m
Average power consumption 500W/sqm
Driving method 1/10 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
