Slim Indoor P4 Full Color LED Display Panel with 576X576mm

Quantity:
  • P4.8

  • Video Display

  • 1R,1G,1B

  • 1/15 Scan

  • LED Video Display

  • IP31

  • 576X576mm

  • 288X288mm

  • PRT

  • CE, FCC. ROHS, 3C

  • 8528591090

  • Full Color

  • 4.8mm

  • 43402dots/Sq.M

  • Win XP,Win 2000,Win7/8

  • Stage Performance, Shopping Guide

  • CE, RoHS, CCC, FCC

  • Die-Casting Aluminum

  • 120X120dots

  • Flight Case or Wooden Case

  • Shenzhen

576x576mm Die-cast Aluminum LED Display Panel for indoor rental, suit for P4.8/P5.33/P6,with lightweight, super slim thickness, seamless pliced,good uniformity,perfect display performance

Product features:

1.Die-cast Aluminum material make cabinet  structure light weight and lasting

2.Slim and small cabinet size of 576× 576× 60mm, with only 10.5 kgs

3.The cabinet is portable,convenient to transport and collect, and packed with flight cases, can move to any where,

4.Rental design with fast locks and aviation plugs, easy to install and dismantle without any tools, save much time and labor cost

5. Can be suspend or fixed installation, Seamless splicing

6.SMD2121 leds with black body ensure high constrast radio, and wide view angle

7.No fan, Lower noise,lower power consumtion and good heat dissipation

Widely used in public advertising, theatre, live show, live meeting, banquet, stage background etc.

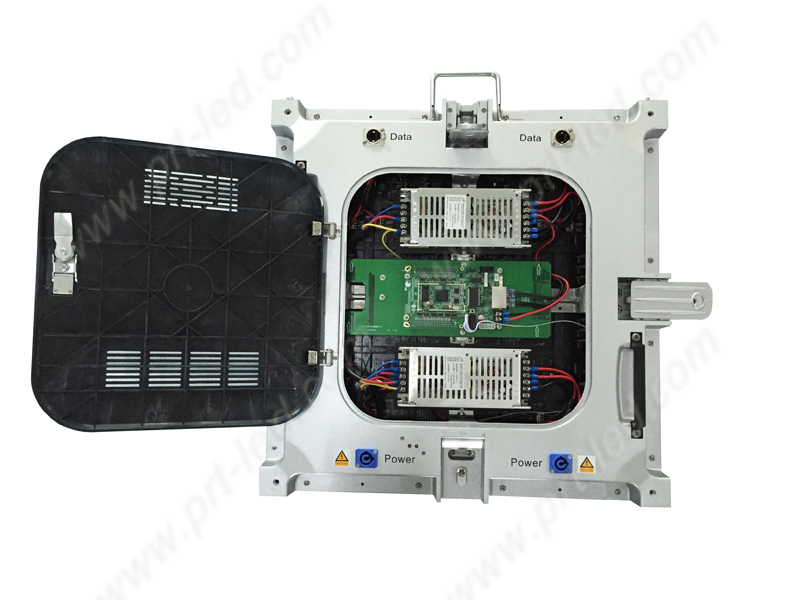

More pictures for reference:
Slim Indoor P4 Full Color LED Display Panel with 576X576mm


Slim Indoor P4 Full Color LED Display Panel with 576X576mm

Slim Indoor P4 Full Color LED Display Panel with 576X576mm
Slim Indoor P4 Full Color LED Display Panel with 576X576mm Slim Indoor P4 Full Color LED Display Panel with 576X576mm

Slim Indoor P4 Full Color LED Display Panel with 576X576mm


P4.8 SMD3528 Indoor full Color LED Screen Specification
Pixel pitch 4.8mm
Pixel Configuration 1R1G1B
LED component SMD3528
Size of module 288mm x 288mm
Resolution of module 60x60
Size of cabinet 576mm x 576mm x 65mm
Resolution of cabinet 120x120
Material of Cabinet Die-casting Aluminum
Weight of Cabinet 10.50KGS
Brightness >1500cd/sq.m
Density 43042dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 3-50M
Maximum power consumption 1200W/sq.m
Average power consumption 640W/sq.m
Driving method 1/15 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
