Slim Thickness P6 Full Color LED Display Screen for Outdoor Rental

Quantity:



Inquire Add to Basket

Model NO.:
P6
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Average Power Consumption:
300W / m⊃2;
Scanning Mode:
1/8 Scan
Application:
Advertising, Stage Performance, Rental
LED Encapsulation:
SMD3535
Cabinet Size:
576X576mm
Trademark:
PRT
Specification:
CE, FCC. ROHS, 3C
HS Code:
8528591090
Tube Chip Color:
Full Color
Pixel Pitch:
6mm
Display Function:
Video Display
Pixel Density:
27777dots/Sq.M
Display Type:
LED Video Display
Certification:
CE, RoHS, CCC
Module Size:
192X192mm
Protection Grade:
IP65
Transport Package:
Wooden Case or as Required
Origin:
Shenzhen China

Product Description

Full color P6 Outdoor LED Display Board with size 576x576mm for outdoor permanent install or rental, with high brightness and good waterproof, high resolution and good performance

Product features:

1.Waterproof IP65,good for outdoor rental,small size is available

2. SMD led encapsulation confirm wide view angle and slim board

3.High brightness up to 6000nits,long view distance, Good uniformity

4.With Rental design Aluminum Cabinet,easy and quick to assemble without tools in short time

5.Die-casting cabinets confirm the strong configuration and lasting

6.low power consumption, No fans,no noise created, energy-saving and good environment protection

7.Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network

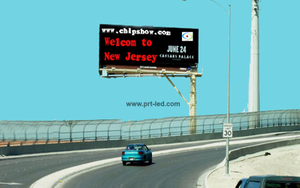

8.Widely used for commercial advertising,stage,show,event background screen,mobile led sign. traffic message board,sports stadium perimeter display etc.

More pictures for reference:
Slim Thickness P6 Full Color LED Display Screen for Outdoor Rental

Slim Thickness P6 Full Color LED Display Screen for Outdoor Rental

P6 Outdoor full Color LED Screen Specification
Pixel pitch	6mm
Pixel Configuration	1R1G1B
LED component	SMD3535 black
Size of module	192mm x 192mm
Resolution of module	32x32
Size of cabinet	576mm x 576mm x 65mm
Resolution of cabinet	96x96
Material of Cabinet	Die-casting Aluminum
Weight of Cabinet	12KGS
Brightness	>6000cd/sq.m
Density	27777dots/sq.m
Best viewing angle	140 /140
Best viewing distance	6-80M
Maximum power consumption	<1000W/sq.m
Average power consumption	<400W/sq.m
Driving method	1/8 scan
Control method	Synchronization
Gray scale	65536
Colors	256256256
Color temperature	3200-9300k
Uniformity	97%
Working voltage	AC220V/110V±10%
Working temperature	-20ºC~+50ºC±10%
Working humidity	10% ~ 90%
MTBF	10,000 hours
Frame frequence	50/60Hz
Refresh frequence	>2000Hz
IP grade	IP65
Life Span	100,000 hours
Data transafer method	RJ45
Pratical standard	CCC TUV-CE ETL etc.
Effectivce Communication Distance(without relay)	Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM
Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform	WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
