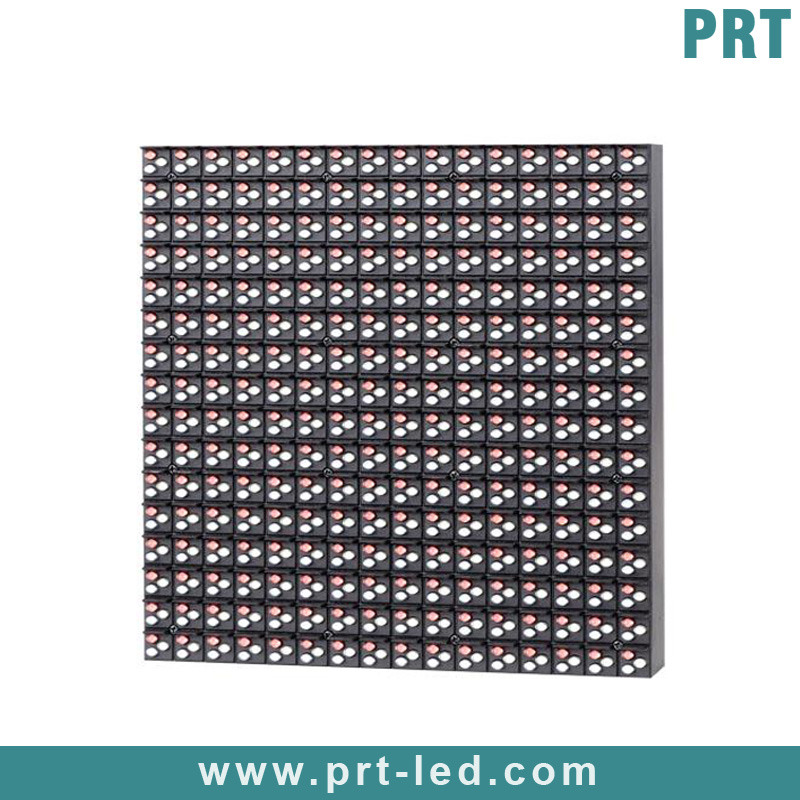

8000nits Full Color P16 Wholesale Outdoor LED Module 256*256mm

Quantity:
  • P16-module
  • RGB
  • 10W
  • IP65
  • DIP346
  • 16X16dots
  • PRT
  • CE, RoHs, FCC, CCC
  • 8528591090
  • Diode
  • <0.3W
  • Epistar
  • Waterproof
  • 256X256mm
  • >7500nits
  • Wooden Case or Paper Carton
  • Shenzhen China
Full color P16 wholesale outdoor led module with size 256x256mm,high brightness,up to 8000cd/sq.m

Product Features:

1. NEW design PCB board confirm goog heat dissipation and high brightness

2. Unique lighting distribution curve, ensure visual effect is perfect seeing from different angle

3. Big pixel pitch make long view distance and good quality vision

4. Dot to dot maintain, easy and quick maintenance, save maintenance cost

5.  Good waterproof IP65, can stand outdoor without any additional protection,to meet different bad weather,long life time over 100000 hours

6.  High quality with 3 years quality warranty

7. Can be assembled with cabinets or on rackes with magnet


P16 Outdoor full Color LED Screen Specification
Pixel pitch 16mm
Pixel Configuration 1R1G1B
LED component DIP346(Epsitar chips)
Size of module 256mm x 256mm
Resolution of module 16x16
Weight of module 0.68kgs
Size of cabinet 1024mmx 768mm x 150mm
Resolution of cabinet 64x48
Material of Cabinet Iron with back doors
Weight of Cabinet <50KGS
Brightness >7500cd/sq.m
Density 3906dots/sq.m
Best viewing angle 110 /50
Best viewing distance 15-200M
Maximum power consumption <600Wsq.m
Average power consumption <280W/sq.m
Driving method Static
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >3000Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
