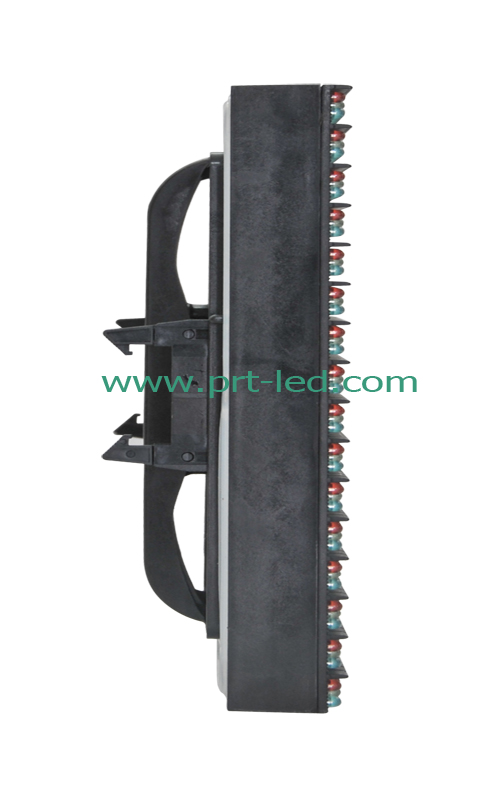

DIP346 Outdoor P10 LED Module with True RGB Color

Quantity:
  • P10-DIP160
  • IP65
  • 1R, 1G, 1B
  • 300W / m⊃2;
  • 1/4 Scan
  • Advertising, Shopping Guide,Stage Performance
  • DIP346
  • 16X16dots
  • PRT
  • Shenzhen China
  • Full Color
  • 10mm
  • Video Display
  • 10000 dot / m⊃2;
  • LED Video Display
  • CE, RoHS, CCC, ETL
  • 160X160mm
  • >7500nits
  • CE, RoHs, FCC, CCC
  • 8528591090
P10 outdoor led module with full color DIP346RGB leds with high brightness and good waterproof IP65, long life span>100000hours,stability technology, high quality


1. Separated driving PCB board confirm the good heat dissipation

2. Unique lighting distribution curve, ensure visual effect is perfect seeing from different angle

3. High density,high definition, smooth and good quality vision

4. Dot to dot maintain, easy and quick maintenance, save maintenance cost

5. High brightness,high definition, long view distance

6. Good waterproof IP65

7. 3 years quality warranty

8.
can be fixed on a bracket with magnets,mostly to be a ssembled with cabinets with different sizes according to the real projects, such as 960x960mm,1280x960mm,800x800mm etc.

Please see some cabinet pictures for reference:

DIP346 Outdoor P10 LED Module with True RGB Color
    cabinet size of 960x960mm

DIP346 Outdoor P10 LED Module with True RGB Color
   cabinet size of 1280x960mm
DIP346 Outdoor P10 LED Module with True RGB Color
 cabinet size of 640x640mm



P10 Outdoor full Color LED Screen Specification
Pixel pitch 10mm
Pixel Configuration 1R1G1B
LED component DIP346
Size of module 160mm x 160mm
Resolution of module 16x16
Size of cabinet 960mmx 960mm /1280mm x 960mm
Resolution of cabinet 96x96 / 128 x 96
Material of Cabinet Iron with back doors
Weight of Cabinet <60KGS
Brightness >1800cd/Sq.m
Density 10000dots/sq.m
Best viewing angle 140 /14
Best viewing distance 10-150M
Maximum power consumption <800W/sq.m
Average power consumption <300W/sq.m
Driving method 1/4 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1800Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
