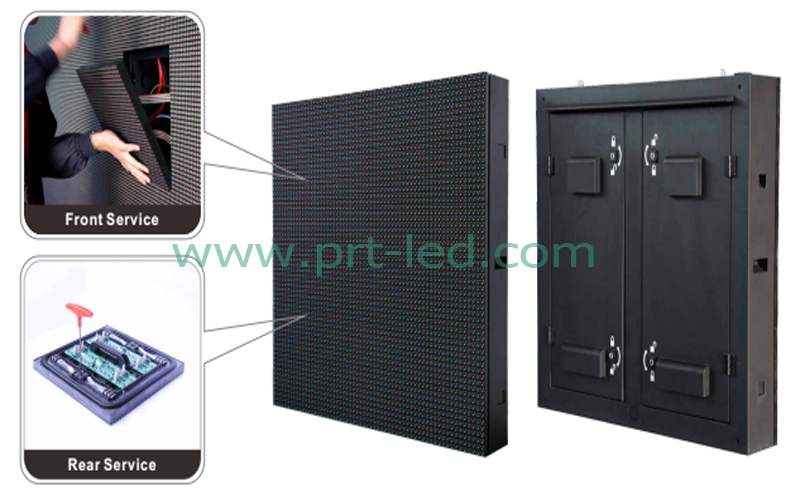

Front/Rear Maintenance RGB LED P10 Module for Outdoor (320X320mm)

Quantity:
  • P10-320

  • Colorful

  • 30W

  • IP65

  • DIP346

  • 32X32dots

  • PRT

  • CE, RoHs, FCC, CCC

  • 8528591090

  • Diode

  • <0.3W

  • Epistar

  • Waterproof

  • 320X 320mm

  • >8500nits

  • Wooden Case or Paper Carton

  • Shenzhen China

Full Color P10 LED Module with super high brightness,up to 8500nits,can be repaired from both front and rear,suit for different install condition

1.With high quality DIP346 chips ensure high brightness and long view distance

2.Front assemble and disassemble,save much labor cost and maintaining space

3.High definition, long view distance, good performance even from far away and under sunshine

4.Dot to dot maintenance confirm repairring easily and quickly,save much material and labour cost

5.Good waterproof IP65 with good quality waterproof glue,can meet different bad weather,heavy raining,strong sunny, windy and fogging

6.2 years quality warranty,with CE,RoHs, FCC certificates

7.Can be assembled with cabinets or on rackes with magnets,suitable for any commercial application

Front/Rear Maintenance RGB LED P10 Module for Outdoor (320X320mm)

Front/Rear Maintenance RGB LED P10 Module for Outdoor (320X320mm)


Front/Rear Maintenance RGB LED P10 Module for Outdoor (320X320mm)
Front/Rear Maintenance RGB LED P10 Module for Outdoor (320X320mm)
Front/Rear Maintenance RGB LED P10 Module for Outdoor (320X320mm)




P10 Outdoor full Color LED Screen Specification
Pixel pitch 10mm
Pixel Configuration 1R1G1B
LED component DIP346(Epistar)
Size of module 320mm x 320mm
Resolution of module 32x32
Size of cabinet 960mmx 960mm x150mm(standard size)
Resolution of cabinet 96x96dots
Material of Cabinet Iron with back doors
Weight of Cabinet <60KGS
Brightness >8000cd/sq.m
Density 10000dots/sq.m
Best viewing angle 110 /60
Best viewing distance 10-150M
Maximum power consumption <1000W/sq.m
Average power consumption <300W/sq.m
Driving method 1/2 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1800Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
