HD P5 Outdoor LED Display for Street Poles (advertising display)

Quantity:
  • P5 outdoor

  • IP65

  • 1R, 1G, 1B

  • 220W / m²

  • 1/8 Scan

  • Advertising

  • SMD2727

  • 800X1600mm

  • PRT

  • CE, FCC. ROHS, 3C

  • 8528591090

  • Full Color

  • 5mm

  • Video Display

  • 40000dots/Sq.M

  • LED Video Display

  • CE, RoHS, CCC, ETL

  • 160X160mm

  • 800X1200mm

  • Wooden Case or as Required

  • Shenzhen China

Outdoor P5 High Resolution LED Display for lighting pole, new products instead of stational light box, made with led modules and goog waterproof, can be shown with videoes and images controlled by internet,3G/4G, Wifi

Product Advantages:

1. Intelligent control: with LAN, WIFI, 3G intelligent management module inside, can control the screen as your convenient, change the display content as you want

2. Saving time and labor:  once the screen is installed successfully, the advertising content can change at any time as request, don't like the traditional static billboards need to be dissambled frequently, save the working time and labor cost, and control the advertising contents easily.

3.High waterproof IP level: with front IP65 and back IP54, good waterproof, can be used outdoor  with any weather

4. Easy maintenance: Side open and back maintenance for option, and dot to dot maintenance, easy and quickly

5.SMD led encapsulation confirm the good uniformity and high definition

6. Can be done with single side or double sides

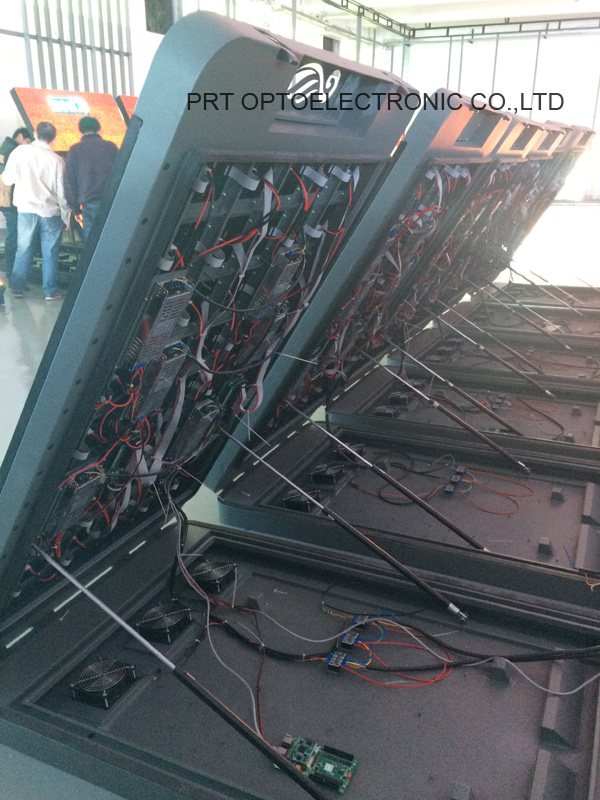

More pictures for understanding well:


HD P5 Outdoor LED Display for Street Poles (advertising display)
HD P5 Outdoor LED Display for Street Poles (advertising display) HD P5 Outdoor LED Display for Street Poles (advertising display)
HD P5 Outdoor LED Display for Street Poles (advertising display) HD P5 Outdoor LED Display for Street Poles (advertising display) HD P5 Outdoor LED Display for Street Poles (advertising display)



Outdoor P5 full color led display for pole
Characteristics Value unit
Pixel pitch 5 mm
LED type SMD2727
Pixel density 40000 Dots/sq.m
Module size 160x160 mm
Module resolution 32x32 dots
Cabinet size 800x1600 mm
Display size 800x1200 mm
Cabinet resolution 160x256 dots
Cabinet weight 57 Kgs
Waterproof IP 65 degree
Brightness 5000 CD/
View angle 120° degree
Gray scale 13 Bit
Display scale 16.7 Million
Power consumption(Max.) 800 W/sq.m
Power consumption(Avg.) 280 W/sq.m
Refresh Frequency 960 Hz
Operation Power AC100~240 V
Operationg Temperature -20~+50 ºC
Operating Humidity 10~90% RH
Operating Life 100,000 Hours
