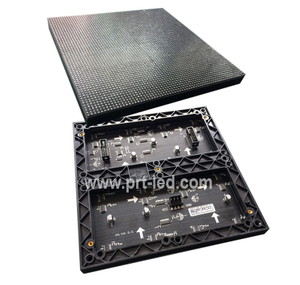

P5 Indoor Full Color LED Module with 160X160mm

Quantity:
  • P5 led display module

  • RGB

  • 12W

  • IP31

  • SMD3528

  • 640X640mm

  • PRT

  • Shenzhen China

  • Diode

  • <0.3W

  • Epistar

  • Not Waterproof

  • 160X160mm

  • Iron

  • CE, RoHs, FCC, CCC

  • 8528591090

P5 Indoor Full Color LED Module with 160x160mm/ full color led display module

Features:

1) SMD led encapsultion with wide view angle and short view distance

2) Unique lighting distribution curve, ensure visual effect is perfect seeing from different angle

3) High definition, smooth and good quality vision

4) Dot to dot maintain, easy and quick maintenance, save maintenance cost

5) Soft mask keep the lamps from impact

6) Can be assembled with cabinets or on rackes with magnet

                   P5 Full Color LED Display Main Parameters
Visual Characteristics Unit Value
Pixel Pitch mm 5.0
Pixel Density Dots/sq.m 40000
Pixel Configuration
SMD3528
Module Resolution dots 32×32
Refresh Rate Hz ≥1200
View Angle(H/V) ° 150/120
Brightness nits ≥2000
Gray Scale Bit 16
IP Rating
31
Power Consumption(Max/Avg) W/sq.m 1000/500
Input Voltage(AC) V 110~240
Modular Characteristics
Cabinet Size(W×H×D) mm  640χ640
Cabinet Material
Iron
Cabinet Weight Kg 15kgs
Module Size(W×H) mm 160×160
Environment
Operation Temperature ºC -20~+40
Operating Humidity
10%~90%
Driving Mode
1/16 Scan
Control Distance Cat 5E <100m,Single mode fiber<10Km
