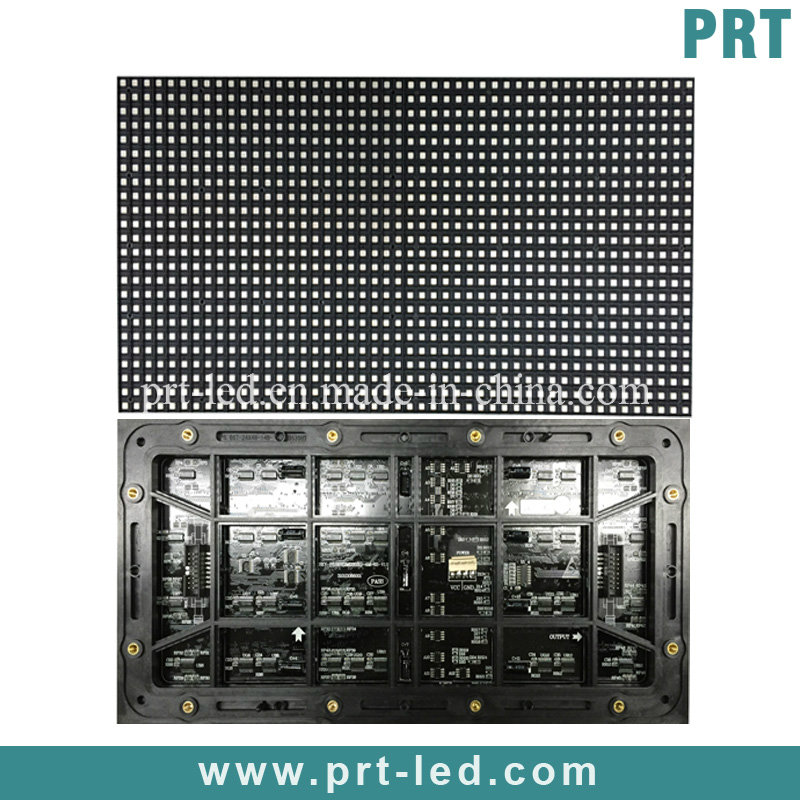

SMD P10 Outdoor Rental LED Display Module

Quantity:
  • P10-320x160

  • IP65

  • 1R, 1G, 1B

  • 350W / m²

  • 1/4 Scan

  • Advertising,Stage Performance,Rental

  • SMD3535

  • 32X16dots

  • PRT

  • Shenzhen China

  • Full Color

  • 10mm

  • Video Display

  • 10000 dot / m²

  • LED Video Display

  • CE, RoHS, CCC, RoHS

  • 320X160mm

  • 640X960mm

  • CE, FCC. ROHS, 3C

  • 8528591090

SMD P10 Outdoor Rental LED Display Module with size of 320x160mm,slim thickness and light weight,
high brightness and good uniformity

Product Features:

1) With Die-casting Aluminum material keep the strong and dearable structure

2) Good waterproof IP65, long life span

3) SMD led encapsulation confirm wide view angle and high brightness

4) Low power consumption,Good heat dissipation without fans,no noise, good environment protection

5) Ligh weight, low transportation costs,convenient to install and dismantle

6) Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network, also can remoto control with asynchronous system.

7) Widely used for commercial led display, advertising led display, stage led display, mobile led display. Traffic led display, rental led display, sports led display etc.



Items Parameter P6.67 Full Color Series  P8 Full Color Series P10 Full Color Series P16 Full Color Series
Module  Pixel Configuration  1R1G1B,SMD3535
(Waterproof)
1R1G1B,SMD3535
(Waterproof)
1R1G1B,SMD3535
(Waterproof)
1R1G1B,SMD3535
(Waterproof)
Pixel Pitch  6.67 8 10 16
Module Resolution(W×H)  48×24 40×20 32×16 20×10
Module Size(mm)                                                                               320×160
Weight Per Module(KG) 0.6 0.58 0.56 0.55
Max Power Consumption(W)  35 35 28 26
Cabinet(Panel)  Modue Qty Per Cabinet(W×H)                                                                                  2×6
Cabinet Resolution(W×H)  96×144 80×120 64×96 40×60
Cabinet Size (W×H)                                                                              640×960
Area per Cabinet(SQM)                                                                              0.6144
Weight of One Cabinet(Kg)  21.5 21 20.5 20
Pixel Density(pixel/SQM)  22,478 15,625 10,000 3,906
Cabinet Flatness(mm)  ≤0.2
Cabinet Material                                                                 Die-casting Aluminum
Optical  Parameters Brightness Calibration by Per Dot                                                                       Yes
White Balance Brightness(Nits) ≥6,000 ≥6,000 ≥4,500 ≥6,000
Color Temperature                                                              3,200_9,300deg.k(adjustable)
View Angle                                                                Horizontal 120°;Vertical 120°
Brightness Uniformity                                                                      ≥97%
Max. Contrast                                                                      4000:1
Electrial  Parameters Max Power Consumption(SQM) 680W 680W 550W 520W
Average Power Consumption(SQM) 300W 300W 240W 240W
Input Voltage(VAC)                                                                 110±20% or 240±20%
Processing Performance Driving Module 1/6 1/5 1/4 static
Frame Rate(HZ) 50~60
Refresh Frequency(HZ) ≥1,800 ≥1,800 ≥1,800 ≥1,800
Using Parameters  Best View Distance(m) 6-22 7.5-28 9-35 16-55
Stored Humidity(RH)                                                               10 _ 95%(no dew formation)
Working Humidity(RH)                                                               10 _ 90%(no dew formation)
Waterproof                                                                   YES
Lifetime(Hours)                                                              ≥100,000
Working Temperature(ºC)                                                                -20~+45
Stored Temperature(ºC)                                                                 -30~+60
